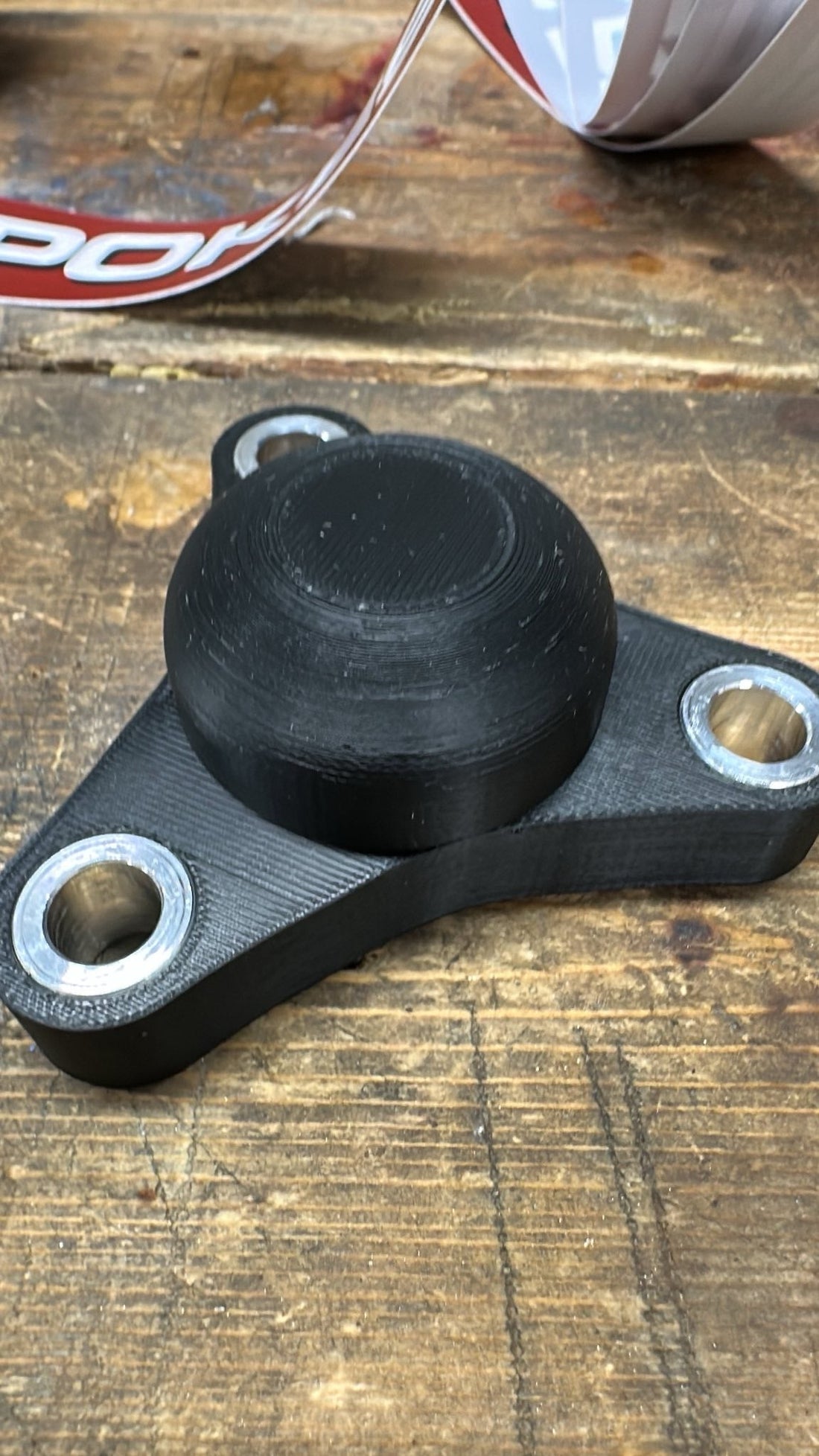

3D printed driveshaft cap from carpokes.com

Custom 3D Printed Driveshaft Cap

Received the 3D printed driveshaft cap (not sure what to call this part) from Tom over at carpokes.com. (Wealth of information on the site along with a well versed community)

3D printed driveshaft cap from carpokes.com

Took out the 16mm bracket bolts and loosed the transmission ones (15mm) (took the top one off to swing the bracket down)

Transmission bracket swung down for driveshaft cap install

Installed the cap after applying a little plastilube on the exposed metal, I used the factory bolts and snugged them down. I opted not to use any blue loctite as the factory did not. Looks like a great fit!

Driveshaft cap installed with factory bolts

Driveshaft cap fitment on Porsche 997.1

Driveshaft cap bolts torqued to 48 ft-lbs
Torqued the bolts to 48 ft.lbs and put the bottom panels back on. Broke two studs in the process so I have another project….

Bottom panels reinstalled after driveshaft cap install
